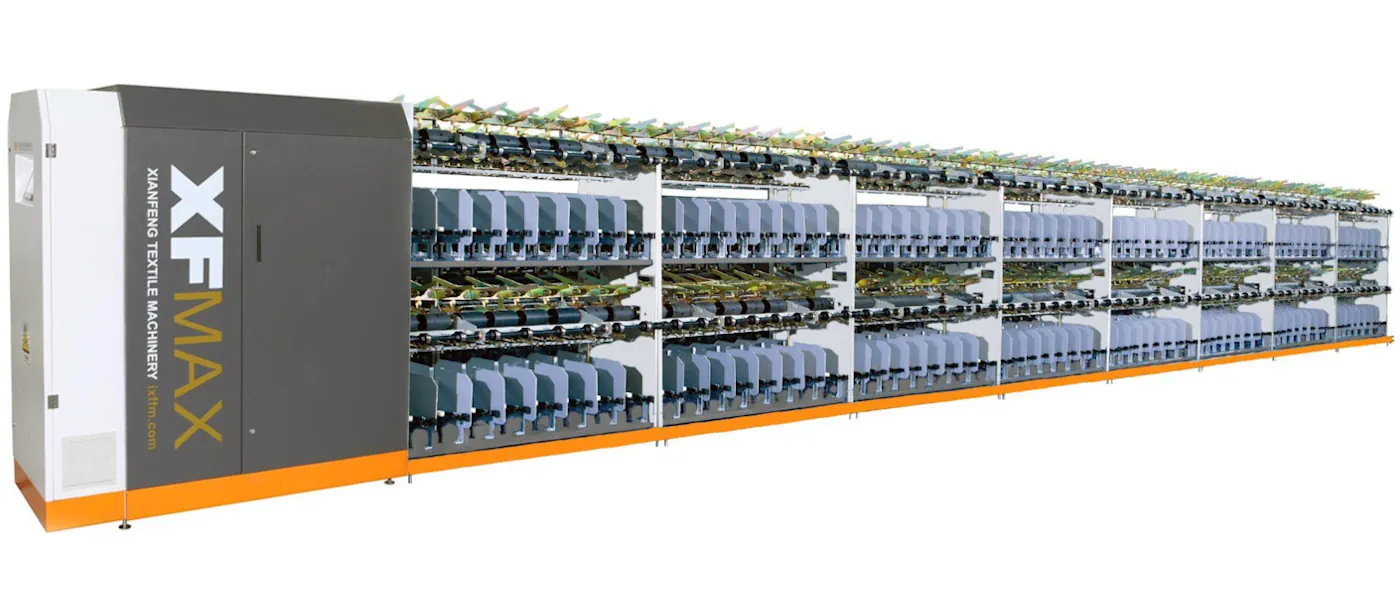

XF-310G

Used for twisting of variety of chemical fiber yarn.
PLC controls setting, edge precision, and stepless adjustable.
Using 350mm straight bobbin, max take-up volume capacity can be 2 KG.
Brand-new design, the use of PLC and servo control system, not only saves the energy of the equipment greatly, but also makes the product Very Easy For Warping. It improves the yarn quality observably.
With low energy and high yarn quality, it is the last advanced twisted machine of XianFeng TM for the world.

Spindle Qty.	256
Spindle Distance (mm)	225
Normal Spindle Speed (RPM)	8000-14000
Spindle Driving Mode	Belt Circulatory Driving
Spindle Fixture Mode	Magnetic Fixture
Twisting Range	50-3000 T/M
Twisting Direction	S or Z
Feed Bobbin Size	L240-350 * Φ42 * Φ110
Take-up Bobbin Size	Φ160 * Φ89 * L165 * L173
Start Model	Y-Δ Slowly Start
Control Mode	PLC
Setting Model	Computerized Setting
Tensioner	Ball Tensioner & Washer Tensioner
Take-up Tensioner	Adjust The Yarn Angle In The Roller
Winding Angle	Stepless Adjustable
Take-up Type	Servo Motor
Main Motor Power	5.5 KW * 2
Size (LxWxH) mm	16410 x 750 x 1895
