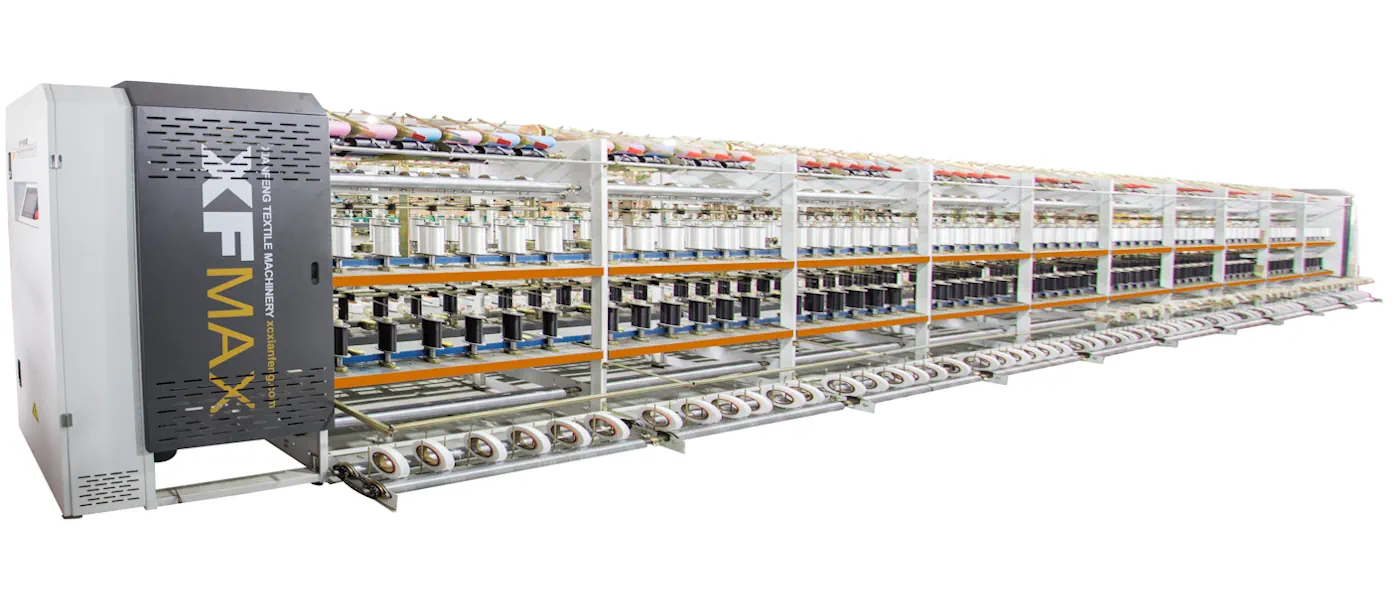

XF-168B

Application

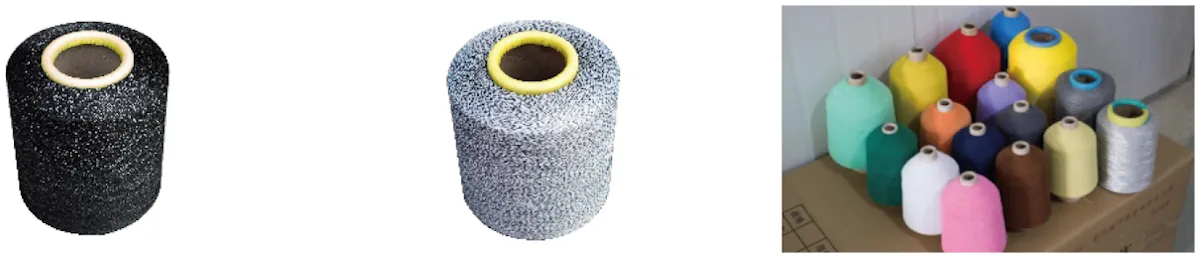

  • Spandex as the core yarn, polyester, polyamide, chemical fiber yarn, cotton yarn or blended yarn as the covering yarn, used in the production of various specifications of double covering yarn.
  • The use of PLC and servo controlling system helps to control the setting & quality of yarn more precisely. It not only saves the energy of the equipment greatly but also improves the output.

Technical Specification

Type Double Sides Single Layer
Spindle Qty. (8 Sections) 192 (96 For Double Layers) / 256 (128 For Double Layers)
Spindle Distance (mm) 96 Spindle – 270 / 128 Spindle – 205
Spindle Speed (RPM) 9000-15000
Twisting Range 200-3500 T/M
Twisting Direction S or Z
Max. Drawing Range (Times) 1.5-4.8
Take-up Setting Mode Full Computerized Setting/Computerized Setting/Cam Setting
Transmission Mode Mechanical Transmission/Servo Motor Transmission
Total Power 13 KW

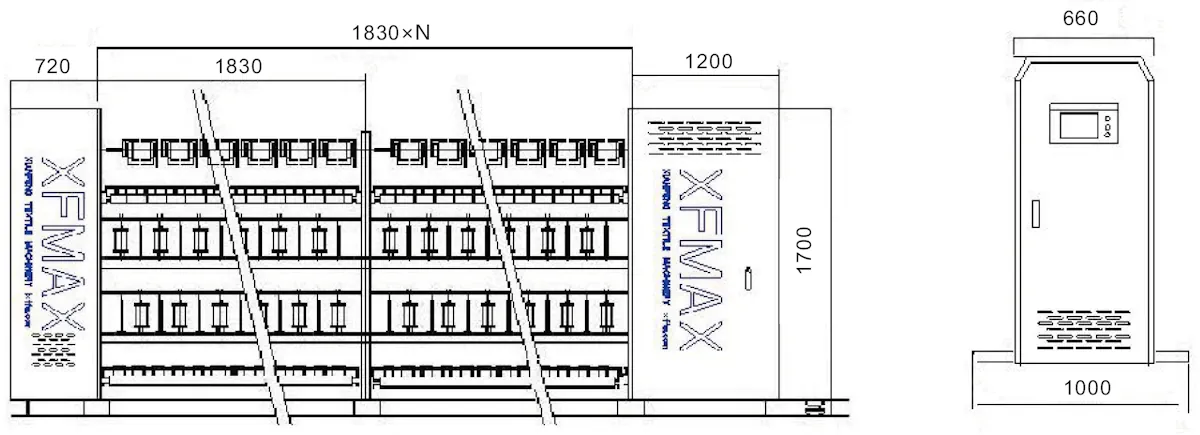

Size (LxWxH) mm 16500 x 1200 x 1700
